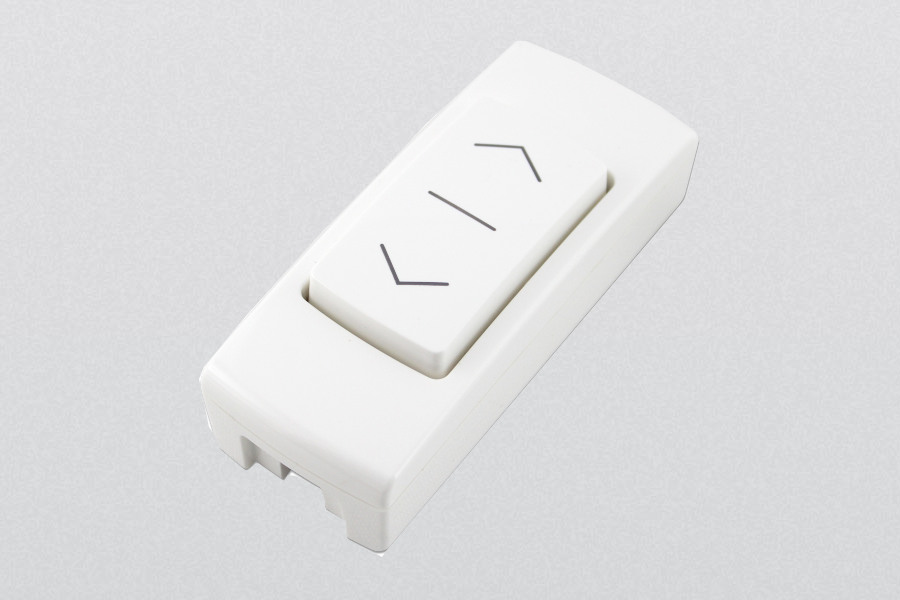

Blind intermediate switch, 10 A, 230 V~, for cable assembly as a setting/auxiliary switch for roller shutter or blind drivers
Blind intermediate switch, 10 A, 230 V~, for cable assembly as a setting/auxiliary switch for roller shutter or blind drivers

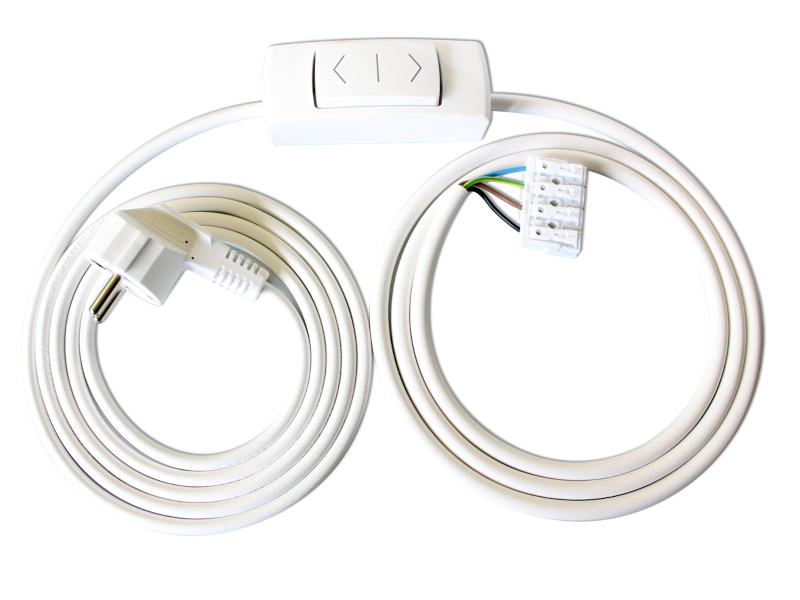

Blind intermediate switch, 10 A, 230 V~, assembled with 2 m supply cable, as a setting/auxiliary switch for roller shutter or blind drivers, als Einstell-/Hilfsschalter für Rolladen- bzw. Jalousieantriebe

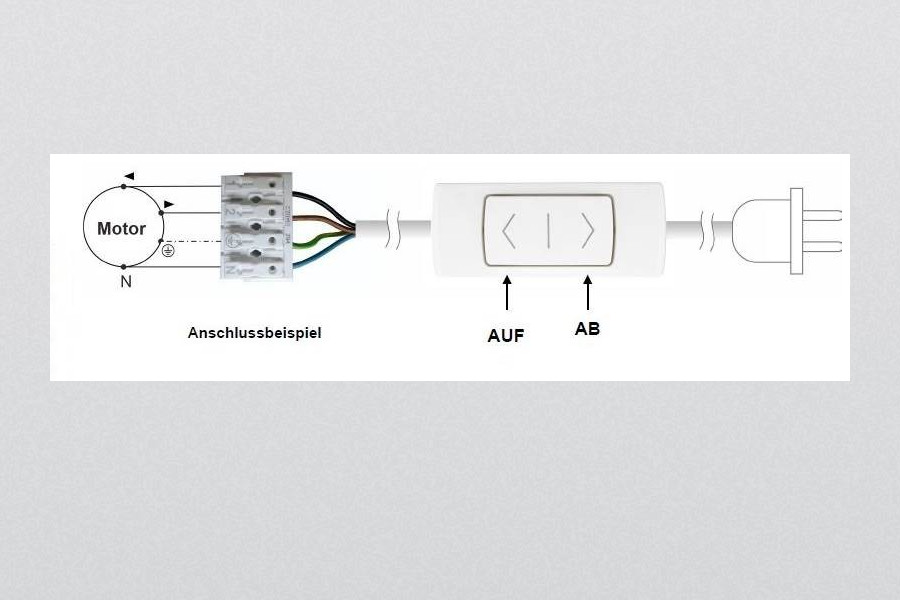

Connection Exampel Blind intermediate switch type 5050

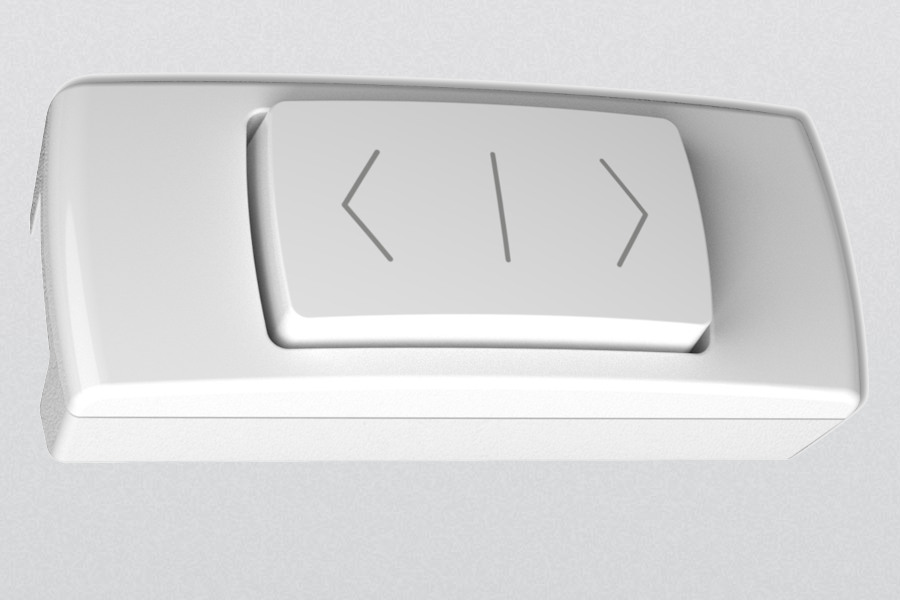

Blind intermediate switch Type 5050

10 A, 230 V~, 1-pole, nominal power SBL load - max. 100 W, screw terminals for max. 2.5 mm², protection class IP20,

switching function UP/DOWN/STOP in the middle position

Dimensions LWH 95 x 38 x 32 mm



for cable assembly as a setting/auxiliary switch for roller shutter or blind drivers



Back to overview







inter BÄR No. Colour Version Packing unit
5050-108.01 white without cable 10 pieces
5050-188.01 white assembled with 2 m supply cable with angle plug, 1.50 m cable with plug-in terminals 10 pieces
